The End of Blade Replacement Guesswork

Every belt cleaner manufacturer wants to lock you into their blades, cartridges, and tensioners. The Uni-Blade breaks the lock: “the patented UniBlade design allows for fit to any OEM, requiring only blade height and belt width for selection.” The blade installs to your existing pipe and bar with set screws — release tension, swap the blade, re-tension, done.

• No more pins · no more beam clamps · no more chatter · no more loose fit — with 100% blade engagement across the material path.
• Custom widths without drilling — need the blade to match the material path? No additional holes required; just order the width you need. Material load offset? No problem.
• MSHA Approved IC-379/01 on every series.
• Stocked and supported from Fontana — and our MSHA & OSHA trained crews can install during your outage.

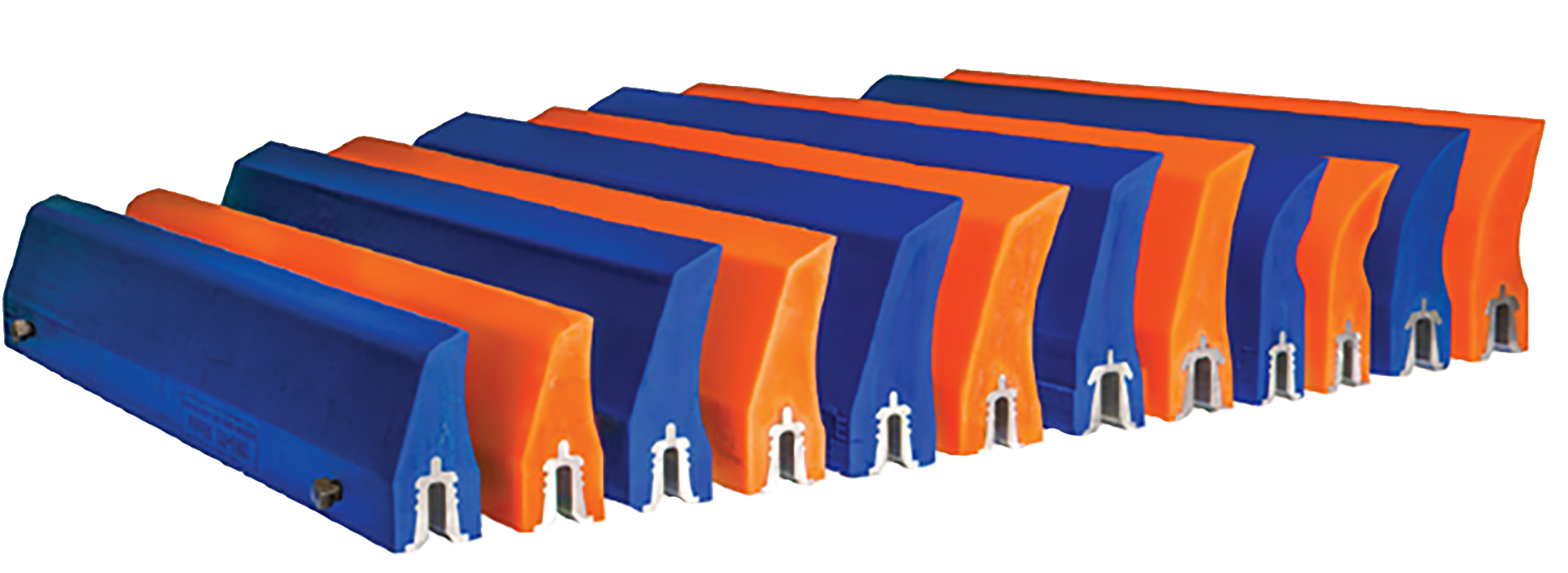

Seven Series Cover the Field

Selection takes two numbers: blade height and belt width. Blade width = belt width minus 2” (E10: minus 6”), belts 18”–72”. Part numbers read series + urethane + width — a 48” belt takes an E4M46 in blue Ev-R-Wear or E4U46 in orange standard.

Series	Blade Height	Channel Width	Bar Size	Part Numbers

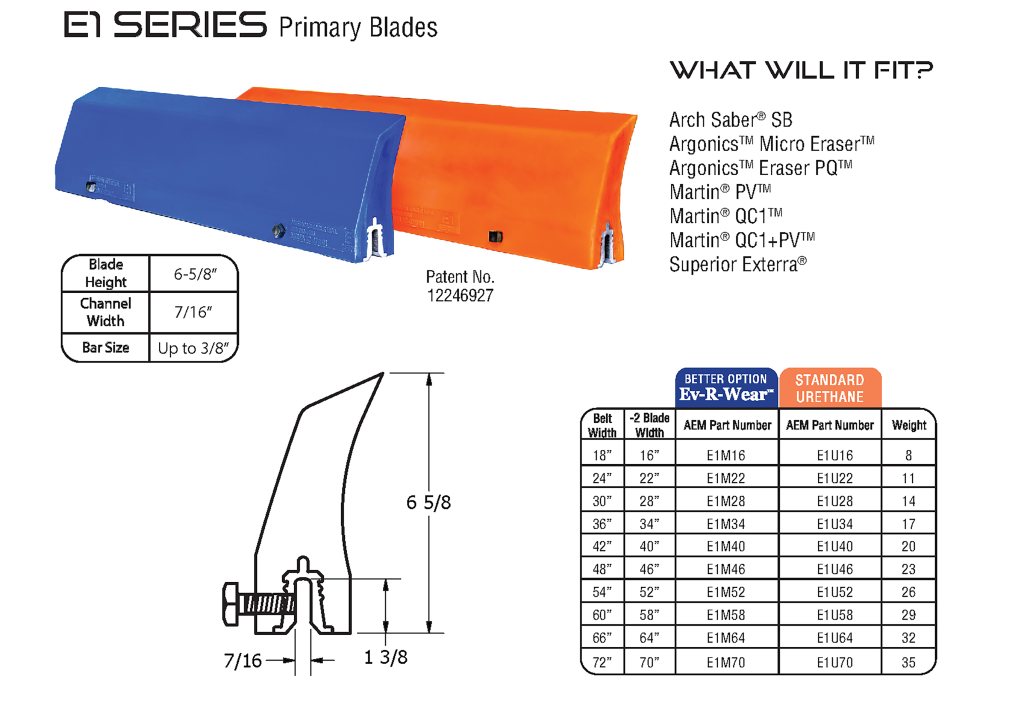

E1	6-5/8”	7/16”	Up to 3/8”	E1M16–E1M70 / E1U16–E1U70

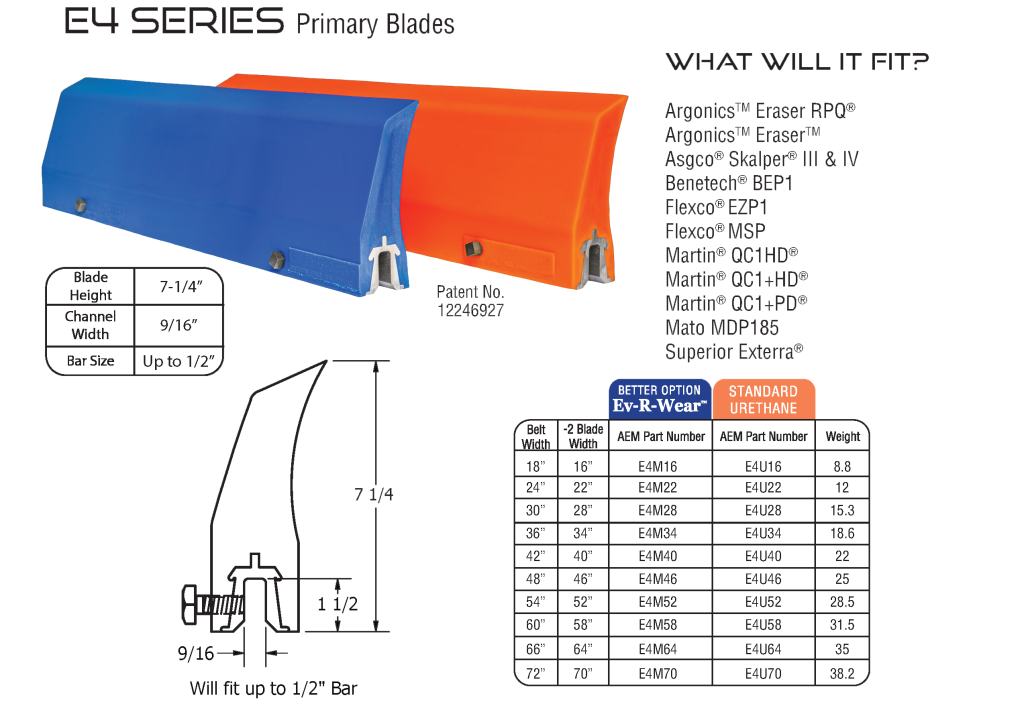

E4	7-1/4”	9/16”	Up to 1/2”	E4M16–E4M70 / E4U16–E4U70

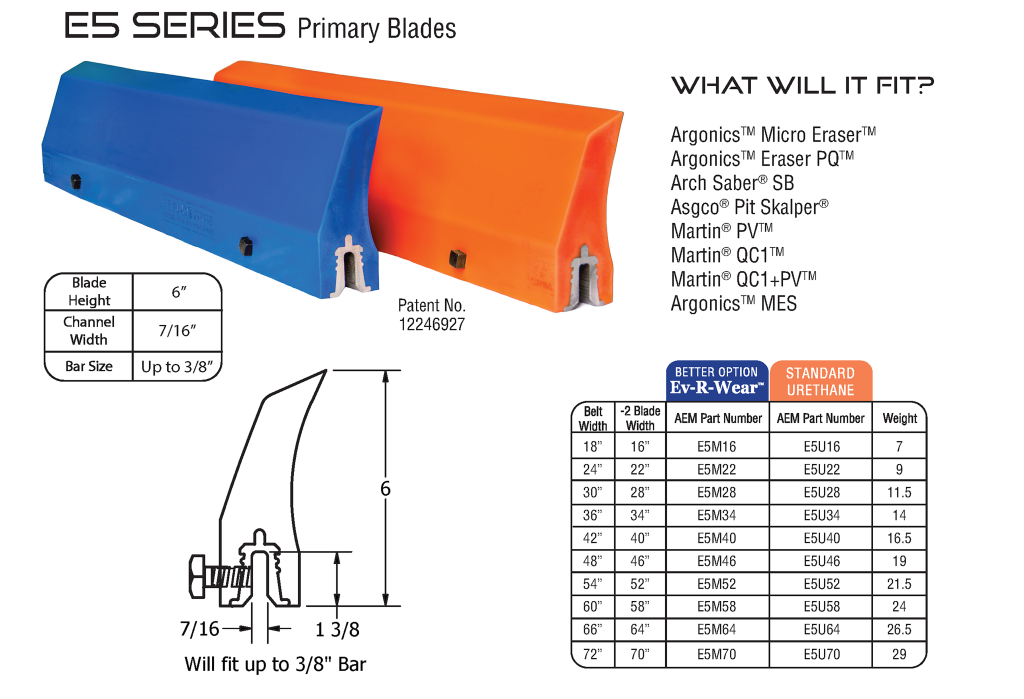

E5	6”	7/16”	Up to 3/8”	E5M16–E5M70 / E5U16–E5U70

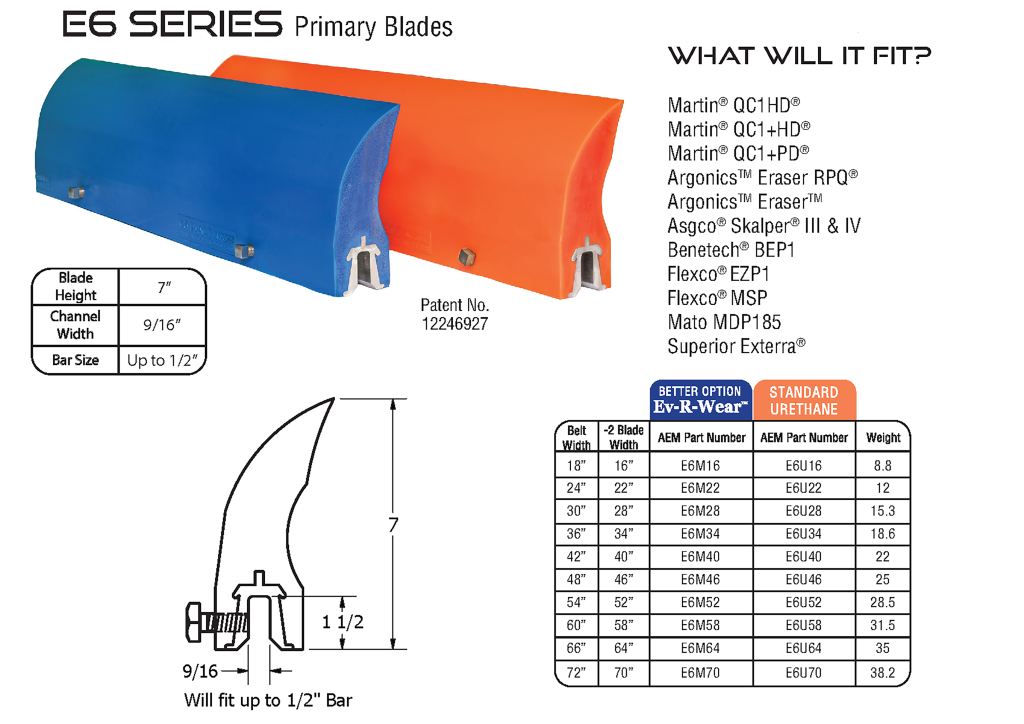

E6	7”	9/16”	Up to 1/2”	E6M16–E6M70 / E6U16–E6U70

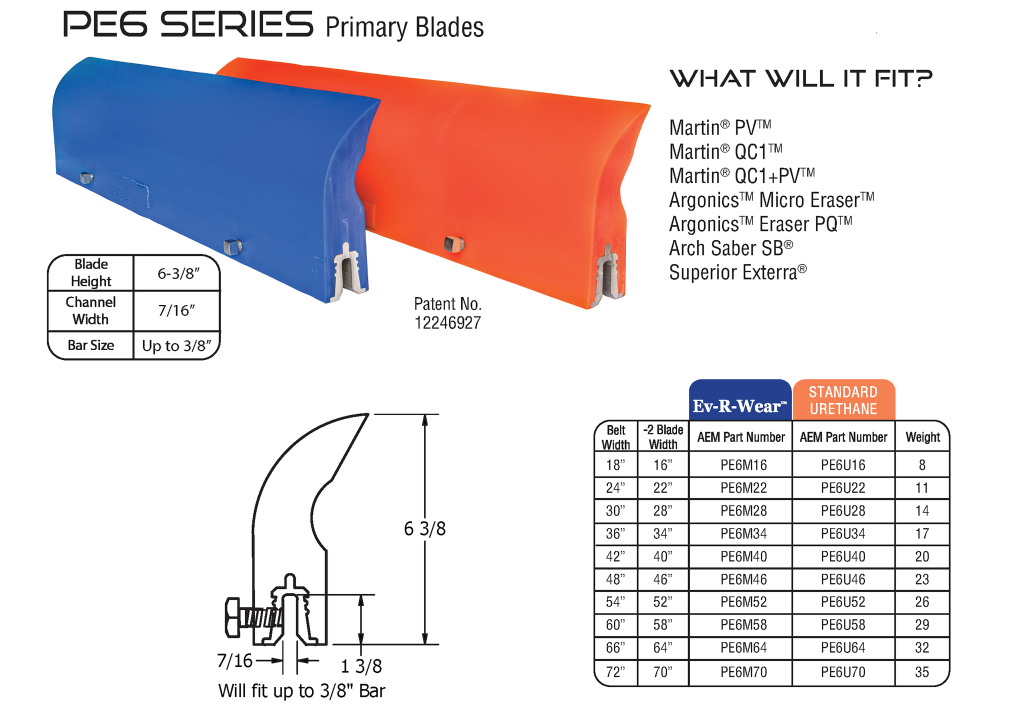

PE6	6-3/8”	7/16”	Up to 3/8”	PE6M16–PE6M70 / PE6U16–PE6U70
E10	10”	.850”	Up to 3/4”	E10M12–E10M66 / E10U12–E10U66

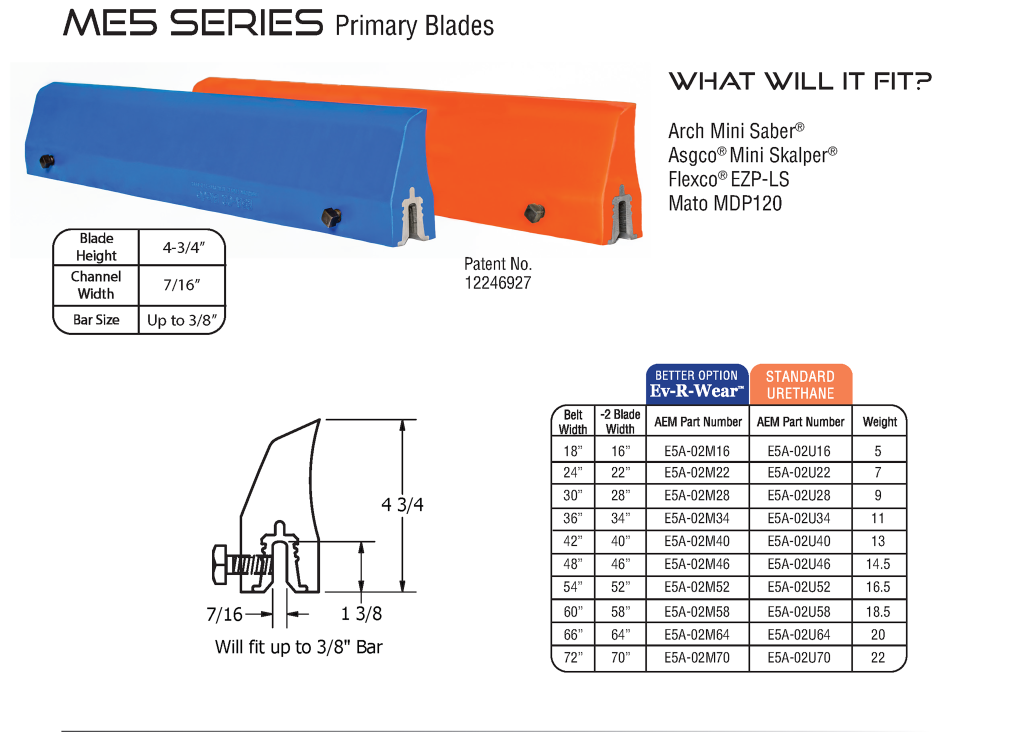

ME5 (Mini)	4-3/4”	7/16”	Up to 3/8”	E5A-02M16–M70 / E5A-02U16–U70

Find Your Match — Cross-Reference by Your Current Cleaner

Running one of these cleaners today? Some are fit by more than one series — pick by blade height and channel, or send us a photo of the mainframe tag and we’ll match it. Click through for dimensions and ordering details.

Your Current Cleaner	Uni-Blade Match	Details
Arch Mini Saber®	ME5	View →
Arch Saber® SB	E1 · E5 · PE6	View →
Argonics™ Eraser™	E4 · E6	View →
Argonics™ Eraser PQ™	E1 · E5 · PE6	View →
Argonics™ Eraser RPQ®	E4 · E6	View →
Argonics™ MES	E5	View →
Argonics™ Micro Eraser™	E1 · E5 · PE6	View →
Argonics™ S3Max™	E10	View →
Asgco® Mini Skalper®	ME5	View →
Asgco® Pit Skalper®	E5	View →
Asgco® Skalper® III & IV	E4 · E6	View →
Asgco® Super Skalper® HD	E10	View →
Benetech® BEP1	E4 · E6	View →
Flexco® EZP1	E4 · E6	View →
Flexco® EZP-LS	ME5	View →
Flexco® MSP	E4 · E6	View →
Flexco® Tuffshear® MMP	E10	View →
Martin® Pit Viper™	E1 · E5 · PE6	View →
Martin® QC1™	E1 · E5 · PE6	View →
Martin® QC1HD®	E4 · E6	View →
Martin® QC1 HD Max®	E10	View →
Martin® QC1+HD®	E4 · E6	View →
Martin® QC1+PD®	E4 · E6	View →
Martin® QC1+PV™	E1 · E5 · PE6	View →
Mato MDP120	ME5	View →
Mato MDP185	E4 · E6	View →
Mato MDP235	E10	View →
Superior Exterra®	E1 · E4 · E6 · PE6	View →

Don’t see your cleaner? The list keeps growing — call (909) 350-4703 and we’ll check fitment for you.

Five Urethanes for Every Environment

Urethane	Color / Code	Durometer	Best For
Ev-R-Wear™	Blue / M	83A	High-abrasion environments and conditions where lubricity is crucial
Standard	Orange / U	83A	The economical choice — suitable for most applications
Chemical	Green / C	80A	Chemical exposure and wet applications (non-hydroscopic)
High Heat	Red / H	95A	Applications regularly over 160°F (continuous to 250°F, intermittent 300°F)
Food Grade	White / W	83A	Meets FDA criteria CFR21.177.1680

Spec Sheets & Resources

Cutsheets: E1 · E4 · E5 · E6 · PE6 · E10 · ME5 — plus the full Uni-Blade brochure and installation instructions.

All manufacturer names and marks are trademarks of their respective owners, used solely to identify blade compatibility. The ACT Group and American Eagle Manufacturing are not affiliated with or endorsed by these manufacturers. Uni-Blade™ and Ev-R-Wear™ are marks of American Eagle Manufacturing. U.S. Patent No. 12,246,927. MSHA Approved IC-379/01.
