UNI-BLADE™ RETROFIT

Flexco® MSP Replacement Blades

Running a Flexco® MSP? The patented American Eagle Uni-Blade (E4 or E6 Series) fits your existing mainframe — no more pins, no more beam clamps, no more loose fit. Keep the cleaner you own, upgrade the blade, cut the cost.

Request Pricing
All Uni-Blade Retrofits

Your Match: E4 or E6 Series

The patented Uni-Blade design (Patent No. 12,246,927) fits any OEM — selection takes only blade height and belt width. More than one series fits this cleaner; pick by the blade height and channel that match your mainframe bar — or send us a photo and we’ll match it.

Series	Blade Height	Channel Width	Bar Size	Part Numbers

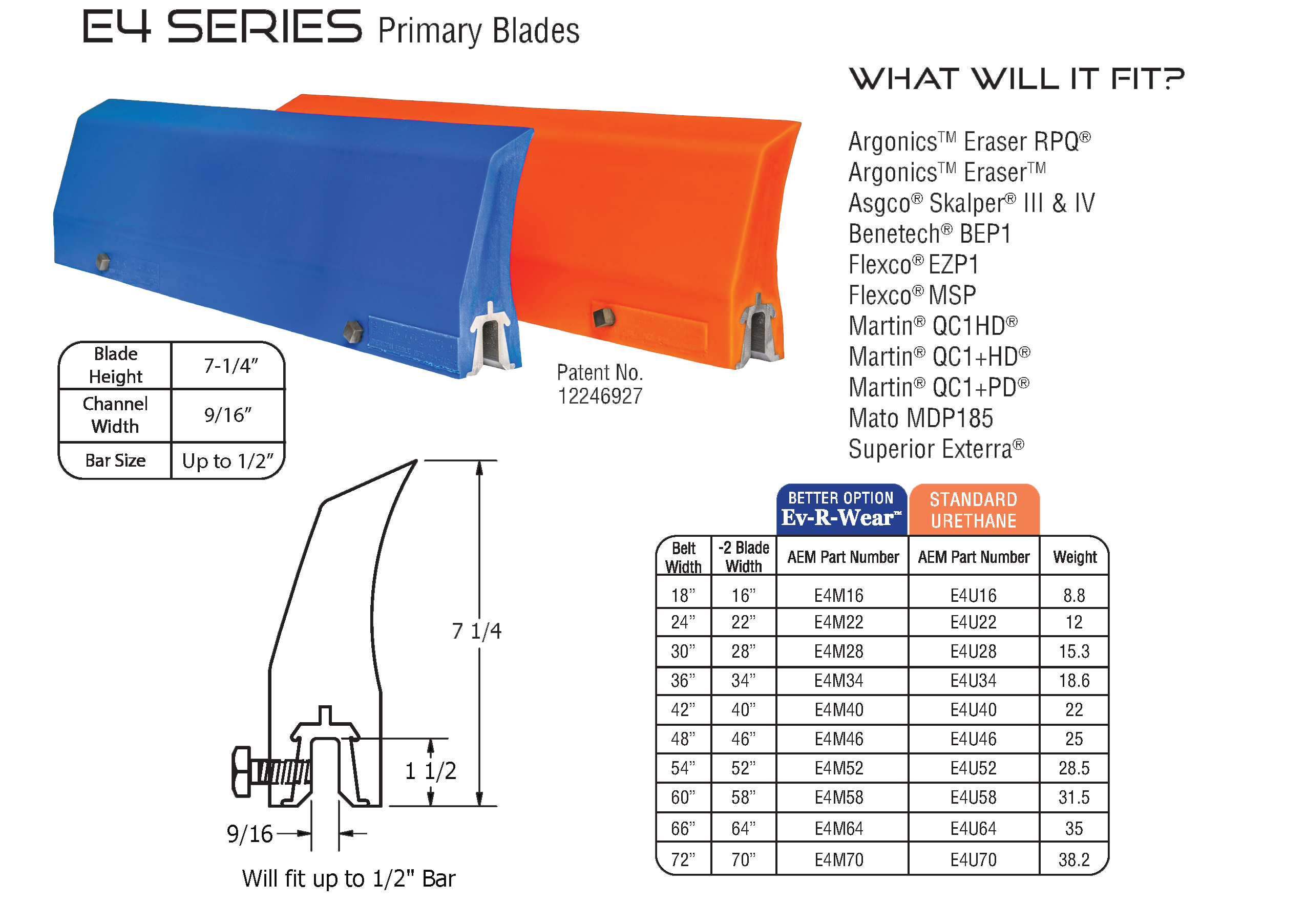

E4	7-1/4”	9/16”	Up to 1/2”	E4M16–E4M70 (Ev-R-Wear) / E4U16–E4U70 (Standard)

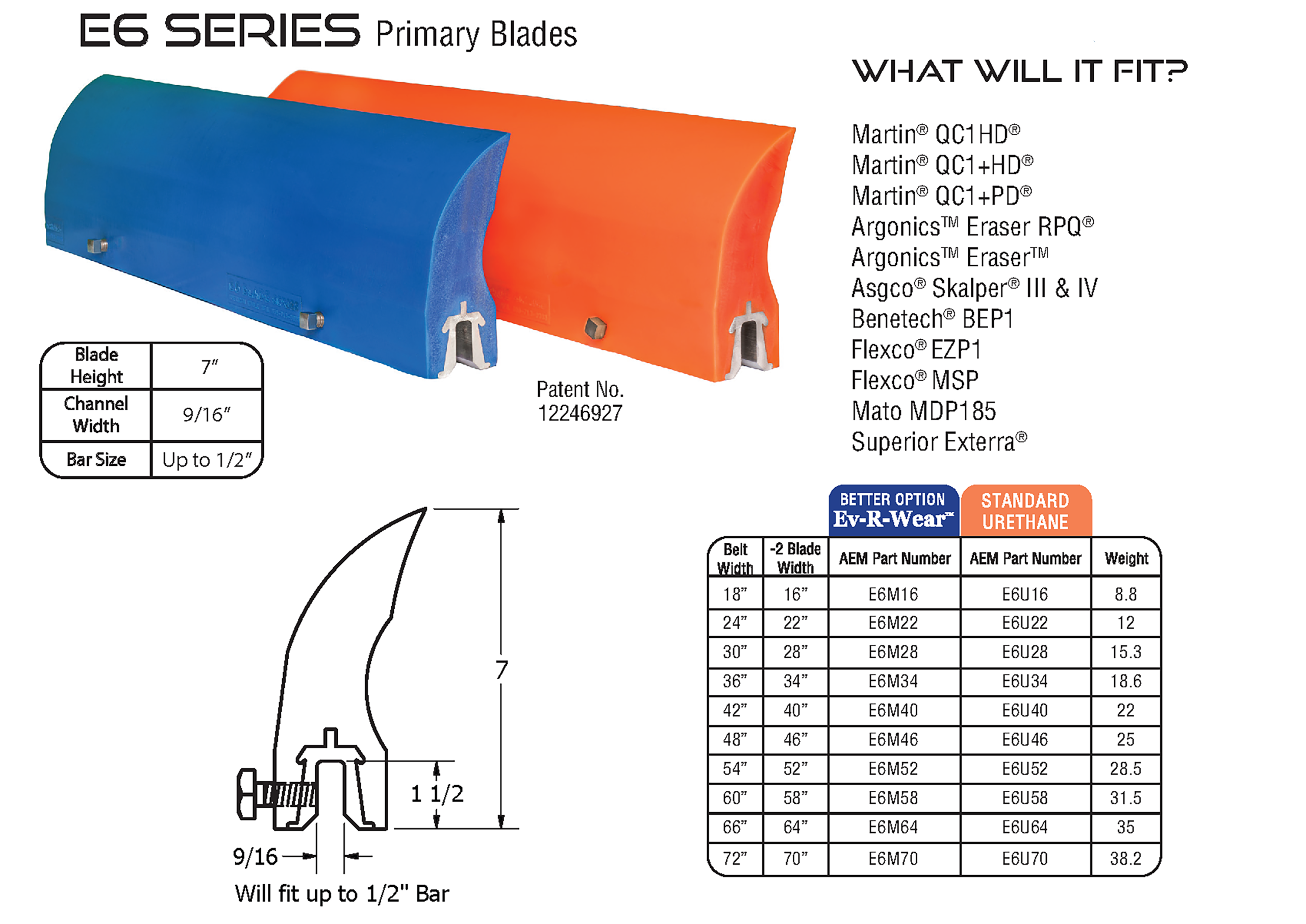

E6	7”	9/16”	Up to 1/2”	E6M16–E6M70 (Ev-R-Wear) / E6U16–E6U70 (Standard)

Blade width = belt width minus 2” — a 48-inch belt takes a 46-inch blade — part E4M46 in blue Ev-R-Wear or E4U46 in orange standard. Belt widths 18”–72”. MSHA Approved IC-379/01.

Why Crews Switch From OEM Blades

No more pins, no more beam clamps — the Uni-Blade installs to your existing pipe and bar with set screws. Release tension, swap the blade, re-tension. Done.
100% engagement, no chatter, no loose fit — full blade contact across the material path.
Custom widths without drilling — need the blade to match the material path? No additional holes required; just order the width you need.
Your choice of urethane — blue Ev-R-Wear™ (83A, the pick for high-abrasion service) or orange Standard (83A, the economical choice). Chemical (green, 80A), High Heat (red, 95A, service over 160°F), and FDA Food Grade (white) compounds available on request.
Keep your mainframe — the Flexco® structure and tensioner you already own stay right where they are.

GOOD TO KNOW

The same E4 or E6 blades also retrofit the Argonics™ Eraser RPQ®, Argonics™ Eraser™, Asgco® Skalper® III & IV, Benetech® BEP1, Flexco® EZP1, Martin® QC1HD®, Martin® QC1+HD®, Martin® QC1+PD®, Mato MDP185, and Superior Exterra®. Standardize one blade across a mixed cleaner fleet and carry one spare instead of many.

How to Order

1. Confirm your cleaner is the Flexco® MSP — the tag is on the mainframe, and a photo works. 2. Tell us your belt width and mainframe bar size so we can pick the series. 3. Pick your urethane and add it to your quote list. Our MSHA & OSHA trained crews can install during your next outage if you’d rather not touch it. Spec sheets: E4 Series cutsheet (PDF) · E6 Series cutsheet (PDF) · installation instructions (PDF).

SAME MAINFRAME, BETTER BLADE

Send us your belt width — we’ll quote the Uni-Blade that fits your MSP

Request Pricing
Contact a Real Person

(909) 350-4703 — or (888) 480-0680 toll-free.

All manufacturer names and marks — including Flexco® product names — are trademarks of their respective owners, used solely to identify blade compatibility. The ACT Group and American Eagle Manufacturing are not affiliated with or endorsed by these manufacturers. Uni-Blade™ and Ev-R-Wear™ are marks of American Eagle Manufacturing. U.S. Patent No. 12,246,927.
